AutoSim Pro-Master Kit -Model 7190

$695.00

SKU: 7190 Category: Tags: ,

Description

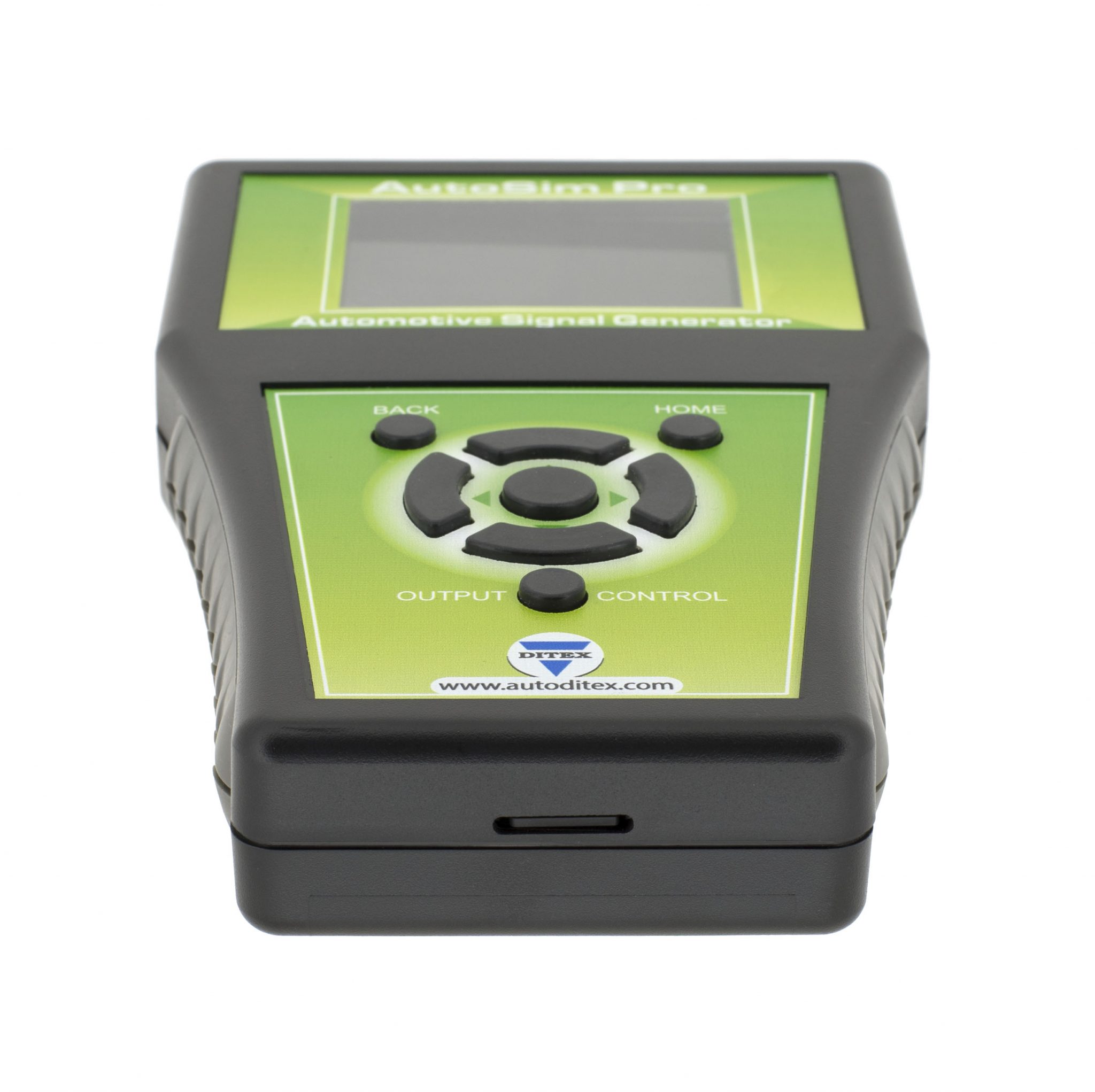

Ditex AutoSim Pro – Master Kit – Model 7190  New!

Automotive sensor simulator and signal generator with additional accessories

Since its release in 2012, the AutoSim sensor simulator has proven itself extremely popular with both technicians and professional diagnosticians thanks to its friendly user interface, attractive and reliable operation.

Eight years after the release of the original model, Ditex presents the second generation AutoSim Pro. Distinguished by its completely updated design and significant functional improvements, the AutoSim Pro Automotive Sensor Simulator from Ditex is a very useful tool suitable for both cars and trucks applications in a variety of working situations. This advanced sensor simulator creates an electrically equivalent system to simulate the sensors and actuators found on an actual vehicle.

Master kit includes the most frequently used additional accessories to the already popular AutoSim Pro Automotive Sensor Simulator from Ditex.

See the Autosim Pro product description for the main details.

MULTI-PURPOSE AUTOMOTIVE SIMULATOR

Note: Training video shows Auto Sim Extended (Master) Kit accessories

FEATURES

  • Handheld standalone device
  • Intuitive operation via function keys;
  • Ultra-fast boot time;
  • Excellent industrial design;
  • Operates on both 12 and 24 Volt electrical systems;
  • Illuminated 2.4″ TFT LCD 320х240 display for optimum visibility;
  • Protection against reverse polarity connection;
  • Low distortion factor and high signal-to-noise ratio for brilliant signals;
  • Adjustable frequency range from 0.1 Hz to 20 kHz;
  • Generating variable power PWM signals up to 4 A;
  • One-wire hook-up PWM output;
  • Precise DC voltage source;
  • Internal Micro SD card for firmware updates.

APPLICATIONS

  • Simulates actual working condition of most automotive sensors;
  • Efficient fault elimination without replacing parts “on suspicion”;
  • Simulates O2 sensor signals: Zirconia and Titania;
  • Checking of basic ECU operation;
  • Controlling the output signal allows to check the ECU response and operation;
  • It can drive ECU into an “open” or “closed” loop;
  • Activation of a large number of actuators;
  • Variable adjustable voltage output from 0 to ±12 volts;
  • Simulates crank and cam sensors inductive and hall;
  • In both crank and cam modes you are able to adjust the number of teeth and the missing teeth.

IN THE SET

AutoSim Pro Master Kit (order code: 7190) contains:

  • Plastic Storage Box with Foam;
  • AutoSim Pro basic kit;
  • Insulated crocodile clip, Pack of 2 (Red, Black);
  • Back-pinning Probe Set (5 needles);
  • Crocodile Clip, 4 mm, 25 A, Red;
  • Crocodile Clip, 4 mm, 25 A, Black;
  • Crocodile Clip, 4 mm, 15 A, Blue;
  • Pluggable Terminal Block (2-Pin, 5mm);
  • SD card to Micro sd card adapter.

Basic kit contains:

  • AutoSim Pro main device;
  • Test Lead, BNC Coaxial, Straight Plug to 4mm Banana Plugs x 2, 60 V, 1000 mm;
  • Test Lead, 2mm Banana Plug to 4mm Banana Plug, Blue, 60 V, 10 A, 800 mm;
  • Power supply cable;
  • Micro SD memory card.

SPECIFICATIONS

AutoSim Pro General Specifications

Sampliing rate 200 KSa/s
Settling Time 4.5 µs
Resolution 12 bit
Maximum output frequency 20 kHz
Output channels 2
Signal output SOUT
Power output POUT
Simultaneous operation of both outputs Yes
Standart operating modes Waveforms, DC, Pulse
Built-in automotive presets Yes
High current PWM control Yes
DC Power supply 12V, 24V DC (vehicle battery)

Display

Type TFT LCD Module
Size 2.4″ diagonal
Resolution 320 x 240 pixels
Backlight 4chip white LED in Parallel
High Brightness 150 cd/m2

Real time clock battery
CR2032, 210 mA/h – save time for up three years without external supply

Important note: Because of lithium-ion battery shipping restrictions, we do not include CR2032 lithium-ion battery inside in the air mail post packages. When you receive the tester, you have to buy a Li-Ion battery type CR2032 yourself and put it into battery holder socket inside the CarScope i-Tester. To do so, you should unscrew and remove four screws to open the bottom cover. We apologize for the inconvenience!

Included Memory Card
4 GB micro SDHC

Outputs

Signal output specification:

Output polarity Positive and Negative
Output amplitude ±10 mV ~ ±12 V (10 mV step)
DC voltage output range ±10 mV ~ ±12 V (10 mV step)
Output current ± 30 mA maximum
Vertical resolution 12 bits
Waveforms Sine, Square, Triangular, Ramp
Sine wave frequency range 0.1 Hz ~ 5 kHz
Ramp/Triangular frequency range 0.1 Hz ~ 5 kHz
Square wave frequency range 0.1 Hz ~ 20 kHz
Square wave duty cycle range, 20 kHz 20% ~ 80 %, step 0.1%
Square wave duty cycle range, 10 kHz 10% ~ 90 %, step 0.1%
Square wave duty cycle range, up to 5 kHz 5% ~ 95 %, step 0.1%
Pulses 1 ~ 100
Pulse width 1 ms ~ 1 sec
Pulse period 2 ms ~ 5 sec

Power output specification:

Output polarity Positive
Amplitude 12 V
Max. output current 4 A continuous
Active level “switched earth”
Output frequency range up to 2 kHz
PWM duty cycle range 1% ~ 100%
Duty cycle setting accuracy 0.1%
Thermal shutdown Yes
Over voltage protection Yes
Current limitation Yes
Short circuit protection Yes

Others

Power supply range 10V DC to 28V DC
Power connector Pluggable Terminal Block 5.0mm, 2 POS
Quiescent power current ≤160mA
Ambient temperature 0°C ~ +35°C
Ambient humidity 0%RH ~ 85%RH
Dimensions 160 mm x 94 mm x 25 mm
Weight 500g

DOWNLOADS

AutoSim Pro – User’s manual

AutoSim Pro – Introduction & Setup video

AutoSim Pro vs AutoSim Detailed Comparison
