ANSED KANE-EG5/PR 5 Gas Automotive Exhaust Gas Analyzer Kit w/ Printer
$5,125.00

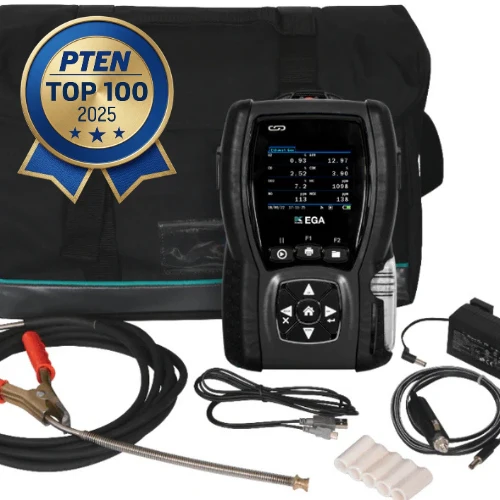

ANSED 5-Gas Diagnostic System Kit includes:
- KANE 5-Gas EGA5
- EP1 Heavy Duty Probe
- CU12VDC2A21 AC Charger
- Filters
- CA10733/4 12V DC Charger
- CL5 USB cable
- Manual
- ANSED Software & KANE LINK Software
- KANE IRP-3 Infra-red Printer
- Soft Shoulder Carry Bag.
Description
ANSED KANE-EG5/PR 5 Gas Automotive Exhaust Gas Analyzer Kit with Optional Printer
(also available without optional printer)

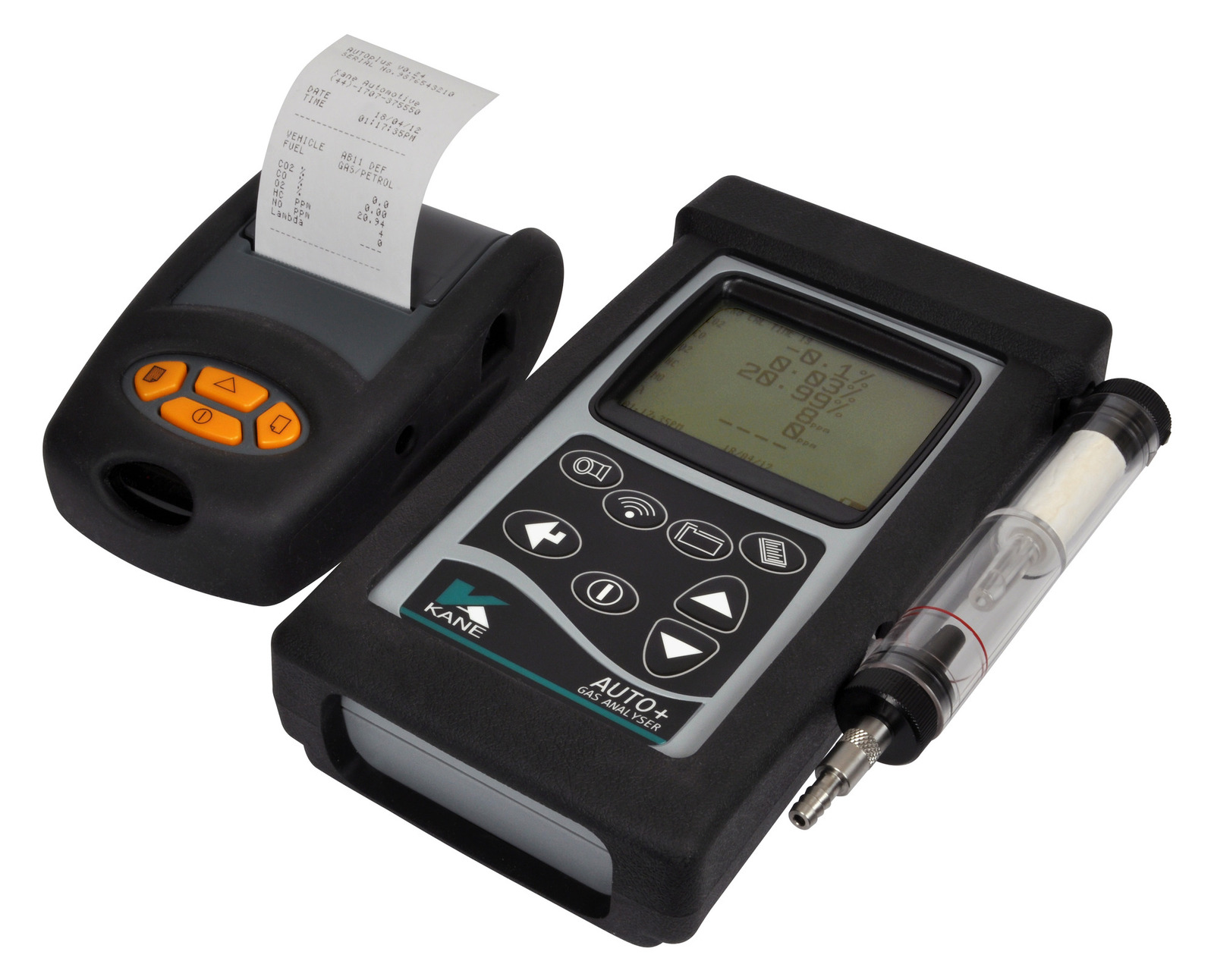

All the features you’d expect from a Kane Exhaust Gas Analyzer including a portable printer
The process of diagnosing general performance, drivability, no code and catalytic converter issues can be complex and frustrating. Modern OBDII systems may miss problems too small or infrequent to set a code. In seconds, the Exhaust Gas Analyzer will detect problems too marginal to be detected by an onboard computer or a scan tool.
Experienced technicians agree that an Automotive Exhaust Gas Analyzer is an integral part of their diagnostic toolbox. One quick test of the exhaust gases emitted from the tailpipe helps reduce diagnostic time, verify repairs are complete, reduce comebacks, and increase overall profitability and customer satisfaction.
With the ANSED Exhaust Gas Diagnostics System, there are no more charts and graphs, no more black magic calculations. The ANSED Exhaust Gas Diagnostics Software interprets the exhaust gases and their interactions and provides a top-down list of suggested problems and solutions in order of probability.
And, KANE LINK to connect to KANE LIVE apps and to the optional KANE-IRP3 Infra-red printer.
The ANSED Exhaust Gas Diagnostics System is the most complete and comprehensive solution on the market today.
ANSED 5-Gas Diagnostic System Kit with Printer includes:
- KANE 5-Gas EGA5
- EP1 Heavy Duty Probe
- CU12VDC2A21 AC Charger
- Filters
- CA10733/4 12V DC Charger
- CL5 USB cable
- Manual
- ANSED Software & KANE LINK Software
- KANE IRP-3 Infra-red Printer
- Soft Shoulder Carry Bag.
Key Benefits
-
Gas Analyzer is completely portable
– Easy to hold in hand
– Sample exhaust gas in the shop or on a road test
– NOx testing without a dyno meter -
Low cost to operate and maintain
– Operates off internal re-chargeable battery
– Self-calibrating, no cal-gas required
– Water trap and filter visible -
Fast diagnostic times
– All readings LIVE “real-time”
– not calculated
Features
- Large Graphic Display– Easy to read all gases and Lambda on one screen, no scrolling
-
Ergonomic Design Keypad
– Simple and easy to navigate and use
-
Bluetooth or USB Cable ready
– Links analyzer easily to PC to use with KANE LINK
-
Variable Pump Speed
– Allows for adjustment of the pump speed, which can then improve battery life
-
Hi-Speed Print Capability
– Kit comes with KANE-IRP3 high speed printer with rechargeable battery
-
Hi-Temp Probe
– Equipped with the EP1 Hi-Temperature Probe, with 4m Neoprene tubing, 350mm insertion depth.
Technical Specifications
| Parameter | Resolution | Accuracy | Range |
| Carbon Monoxide
(High Range NDIR) |
0.01 % | +/- 5 % of reading *1 | 0-10 % |
| Oxygen | 0.01 % | +/- 0.3 % volume *1 | 0-25 % |
| Hydrocarbon
(NDIR) |
1 ppm | +/- 5 % of reading *1
+/- 12 ppm volume *1 |
0-5000 ppm
Over-range: 10,000 ppm |
| Carbon Dioxide
(NDIR) |
0.1 % | +/- 0.3% of reading *1 | 0-20 % |
| Nitric Oxide*²
(fuel cell) |
1 ppm | 0-1500ppm +/-5% or 25ppm; | 0-5000ppm |
| Carbon Monoxide
Corrected COK |
0.01% | Calculated | 0-15% |
| Lambda
AFR (Petrol) (LPG) |
0.001
00.01 |
0.8 – 1.2
11.76 – 17.64 12.48 – 18.72 |
| Sensor response Time |
Nominal 20 seconds |
| Warm up | Less than 2 minutes |
| Pre-programmed Fuels | Petrol/Gasoline, LPG Diesel and CNG. |
| PC connection | Via RS 232 port |
| Data-Logging | 200 Tests |
| Dimensions
Weight Handset Probe |
1.2 kg (2.65 pounds) 240mm x 165mm x 65mm (9.45 x 6.5 x 2.56”) Insertion depth 350mm x Diameter 15mm Clip handle to secure to exhaust, 4m long hose Various probes available including high temperature |
| Ambient Operating Range | +5°C to +50°C / 10% to 90% RH non-condensing |
| Storage temperature | Minimum: 0°C
Maximum: +45°C |
| Battery Charger | Input: 100-240 V
Output: 12 V DC |
| Analyzer battery run time | 6+ hours from full charge. |
ANSED Exhaust Gas Diagnostic Software
The ANSED Exhaust Gas Diagnostics software interprets the exhaust gas analyzer readings in seconds!
The software uses a floating matrix formula for each gas reading, coupled with other diagnostic variables, to enhance the accuracy. Several possible solutions, in order of probability, are suggested with the first one the likely cause in 80% of the situations.
Key Features:
- Effective interpretation of exhaust gas readings
- Offers problem identification and potential solutions
- Diagnose no-code drivability & performance issues
- Ensure catalytic converter related repairs are complete
- Print test results reports: pre- and post-repair
- Verify vehicle running at max efficiency after repairs and prevent comebacks
Key Benefits:
- Instant exhaust gas analysis with an easy-to-read PASS/FAIL report.
- Provides a top-down list of probable causes and suggested service options.
- Pre-repair reports provide initial gas analysis for review.
– Customer Report offers a “customer friendly analysis” of the exhaust diagnostic test.
– Technician Report details the diagnostic test results and suggested procedures. - Post-repair report verifies that repairs have been completed and the vehicle is running at maximum efficiency.
- All reports can be printed or saved for future reference.
