Ansed KANE AUTOplus 5 Gas Analyzer Kit with ANSED Exhaust Gas Diagnostics Software
$4,695.00

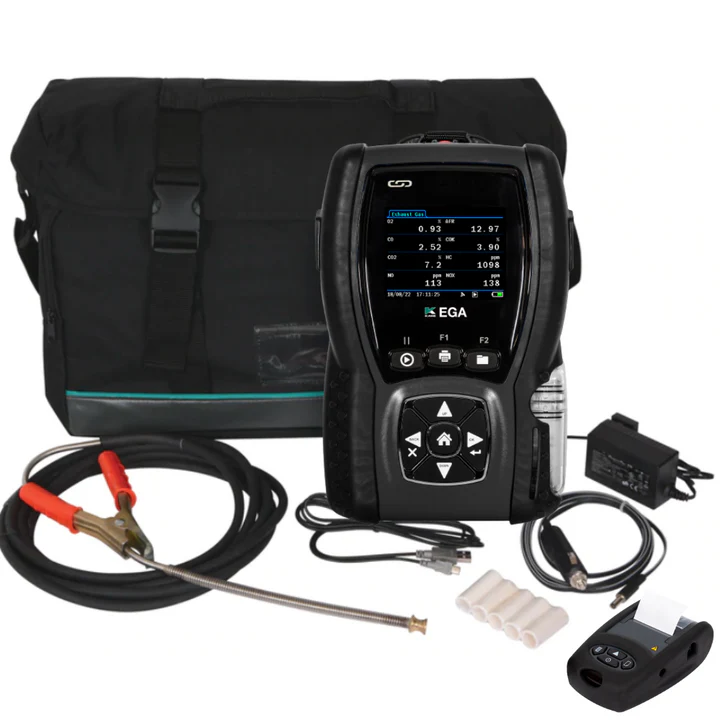

ANSED 5-Gas Diagnostic System Kit includes:
- KANE 5-Gas EGA5, EP1 Heavy Duty Probe
- CU12VDC2A21 AC Charger
- Filters
- CA10733/4 12V DC Charger
- CL5 USB cable
- Manual
- ANSED Software & KANE LINK Software
- Soft Shoulder Carry Bag.
The process of diagnosing general performance, drivability, no code and catalytic converter issues can be complex and frustrating. Modern OBDII systems may miss problems too small or infrequent to set a code. In seconds, the Exhaust Gas Analyzer will detect problems too marginal to be detected by an onboard computer or a scan tool.
Experienced technicians agree that an Automotive Exhaust Gas Analyzer is an integral part of their diagnostic toolbox. One quick test of the exhaust gases emitted from the tailpipe helps reduce diagnostic time, verify repairs are complete, reduce comebacks, and increase overall profitability and customer satisfaction.
With the ANSED Exhaust Gas Diagnostics System, there are no more charts and graphs, no more black magic calculations. The ANSED Exhaust Gas Diagnostics Software interprets the exhaust gases and their interactions and provides a top-down list of suggested problems and solutions in order of probability.
And, KANE LINK to connect to KANE LIVE apps and to the optional KANE-IRP3 Infra-red printer.
The ANSED Exhaust Gas Diagnostics System is the most complete and comprehensive solution on the market today.
Description
5 Gas Analyzer by Kane with Ansed Analyzer & Diagnostic Software
Hand Held Gas Analyzer – CO, HC, CO2, O2 & NOx
(also available with optional printer)
ANSED 5-Gas Diagnostic System Kit includes:
- KANE 5-Gas EGA5, EP1 Heavy Duty Probe
- CU12VDC2A21 AC Charger
- Filters
- CA10733/4 12V DC Charger
- CL5 USB cable
- Manual
- ANSED Software & KANE LINK Software
- Soft Shoulder Carry Bag.
The process of diagnosing general performance, drivability, no code and catalytic converter issues can be complex and frustrating. Modern OBDII systems may miss problems too small or infrequent to set a code. In seconds, the Exhaust Gas Analyzer will detect problems too marginal to be detected by an onboard computer or a scan tool.
Experienced technicians agree that an Automotive Exhaust Gas Analyzer is an integral part of their diagnostic toolbox. One quick test of the exhaust gases emitted from the tailpipe helps reduce diagnostic time, verify repairs are complete, reduce comebacks, and increase overall profitability and customer satisfaction.
With the ANSED Exhaust Gas Diagnostics System, there are no more charts and graphs, no more black magic calculations. The ANSED Exhaust Gas Diagnostics Software interprets the exhaust gases and their interactions and provides a top-down list of suggested problems and solutions in order of probability.
And, KANE LINK to connect to KANE LIVE apps and to the optional KANE-IRP3 Infra-red printer.
The ANSED Exhaust Gas Diagnostics System is the most complete and comprehensive solution on the market today.
It is also easily maintained with a low cost of ownership.
The KANE Gas Analyzer:
- Tests HC, O2, CO, CO2, NOx and Lambda
- All readings LIVE, except NOx and LAMBDA calculated
- Self-calibrating, no cal-gas required
- Dyno not required for NOx testing
Key Benefits
-
Gas Analyzer is completely portable
– Easy to hold in hand
– Sample exhaust gas in the shop or on a road test
– NOx testing without a dyno meter -
Low cost to operate and maintain
– Operates off internal rechargeable battery
– Self-calibrating, no cal-gas required
– Water trap and filter visible -
Fast diagnostic times
– All readings LIVE “real-time”
– not calculated
Features
-
Large Graphic Display
– Easy to read all gases and Lambda on one screen, no scrolling
-
Ergonomic Design Keypad
– Simple and easy to navigate and use
-
Bluetooth or USB Cable
– Links analyzer easily to PC to use with KANE LINK Graphing Software
-
Variable Pump Speed
– Allows for adjustment of the pump speed, which can then improve battery life
-
Hi-Speed Print Capability
– Use with KANE-IRP3 high speed printer with rechargeable batteries
-
Probe
– Equipped with the EP1 Hi-Temperature Probe, with 4m Neoprene tubing, 350mm insertion depth.
Technical Specifications
| Parameter | Resolution | Accuracy | Range |
| Carbon Monoxide
(High Range NDIR) |
0.01 % | +/- 5 % of reading *1 | 0-10 % |
| Oxygen | 0.01 % | +/- 0.3 % volume *1 | 0-25 % |
| Hydrocarbon
(NDIR) |
1 ppm | +/- 5 % of reading *1
+/- 12 ppm volume *1 |
0-5000 ppm
Over-range: 10,000 ppm |
| Carbon Dioxide
(NDIR) |
0.1 % | +/- 0.3% of reading *1 | 0-20 % |
| Nitric Oxide*²
(fuel cell) |
1 ppm | 0-1500ppm +/-5% or 25ppm; | 0-5000ppm |
| Carbon Monoxide
Corrected COK |
0.01% | Calculated | 0-15% |
| Lambda
AFR (Petrol) (LPG) |
0.001
00.01 |
0.8 – 1.2
11.76 – 17.64 12.48 – 18.72 |
| Sensor response Time |
Nominal 20 seconds |
| Warm up | Less than 2 minutes |
| Pre-programmed Fuels | Petrol/Gasoline, LPG Diesel and CNG. |
| PC connection | Via RS 232 port |
| Data-Logging | 200 Tests |
| Dimensions
Weight Handset Probe |
1.2 kg (2.65 pounds) 240mm x 165mm x 65mm (9.45 x 6.5 x 2.56”) Insertion depth 350mm x Diameter 15mm Clip handle to secure to exhaust, 4m long hose Various probes available including high temperature |
| Ambient Operating Range | +5°C to +50°C / 10% to 90% RH non-condensing |
| Storage temperature | Minimum: 0°C
Maximum: +45°C |
| Battery Charger | Input: 100-240 V
Output: 12 V DC |
| Analyzer battery run time | 6+ hours from full charge. |
